Stratus 360

£3,310.02

The Stratus 360 is the first extractor to benefit from Westin’s 360 technology. This is a low maintenance recirculating unit with the addition of the revolutionary air purification system.

Description

Width:1180mm
Depth:420mm
Height:204mm
Finish:Stainless steel
Controls:4-speed remote
Lighting:2 x 10.6W LED light blades; cool (5000K) or warm (3000K)
Filters:Concealed, suitable for dishwashers
Duct position:Not applicable – recirculating only
Motor options:Recirculating
Energy rating: (internal motor)Recirculating only – no energy rating is required
Energy rating: (remote motor)n/a

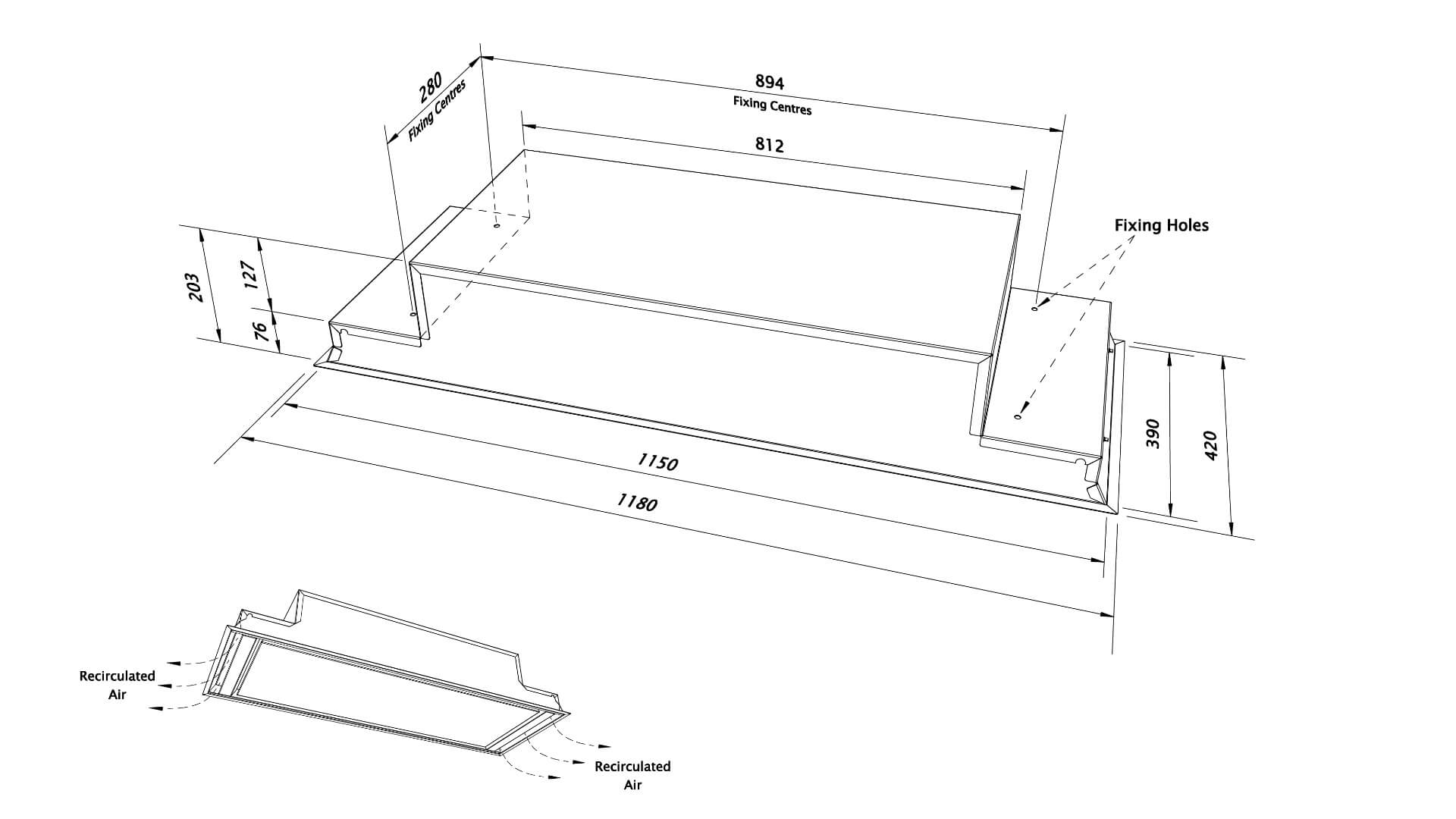

Downloads:Line drawing
Technical data sheet

Technical Drawing

Diagram
